Delta Base

DB Delta Base

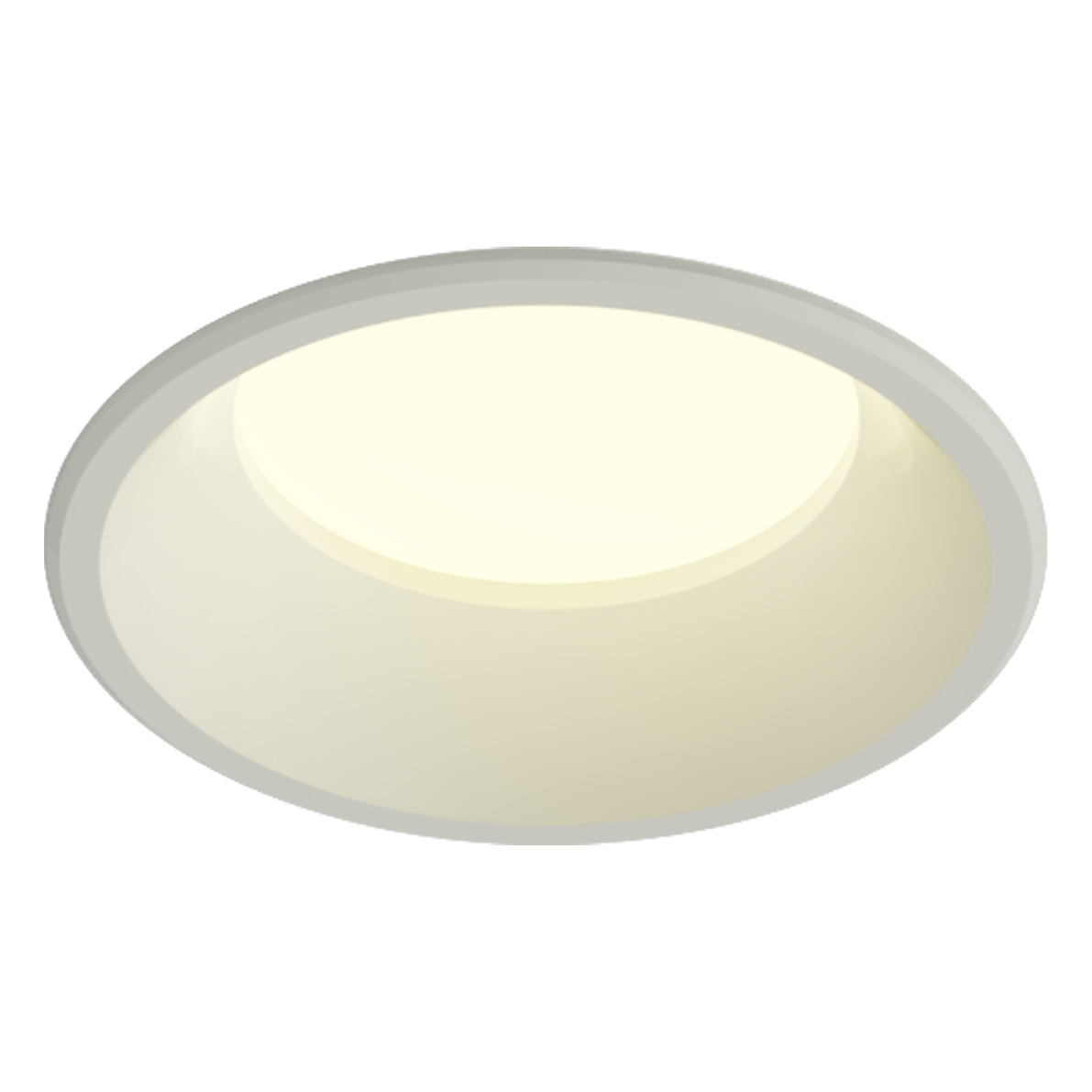

77mm Fixed Architectural Downlight

A simple and perfectly proportioned downlight with a large choice of dimmable Full Spectrum, High CRI and Dim to Warm LED light sources and control options.

The narrow bezel trim and gently angled shape minimise visual impact in the ceiling. The opal diffusion lens provides an even wide-angle light distribution.

Colourbox modular design means clients can choose a selection of products from any of our luminaire families for seamless visual continuity.

Specifications

Type: Fixed architectural downlight
Warranty: FIVE years
Standard: BS EN 60598
IP65
O/D: 77mm
Cut Out: 73mm

Light Sources
Spectrum Pure
Full Spectrum Very High CRI
12.8w 1200lm 98Ra CRI (R9:99)
CCT: 2700K, 3000K, 4000K
Optics: 100°
Driver: Remote Mains Dim (pre-wired), DALI, 0-10v

Spectrum Ambient
Dim to Warm Very High CRI
12.8w 1200lm 96Ra CRI (R9:99)
CCT: 3000K-1800K
Optics: 100°
Driver: Remote Mains Dim (pre-wired), DALI, 0-10v

AC7
Very High CRI with integral driver
9.5w 700lm 95Ra CRI (R9:74)
CCT: 2700K, 3000K, 4000K
Optics: 100°
Driver: Integral Mains Dim

Colourbox Mains Dim products are pre-wired to the relevant driver with a 0.35m LSZH mains cable and LIGHTS ON TESTED prior to leaving our workshop.
