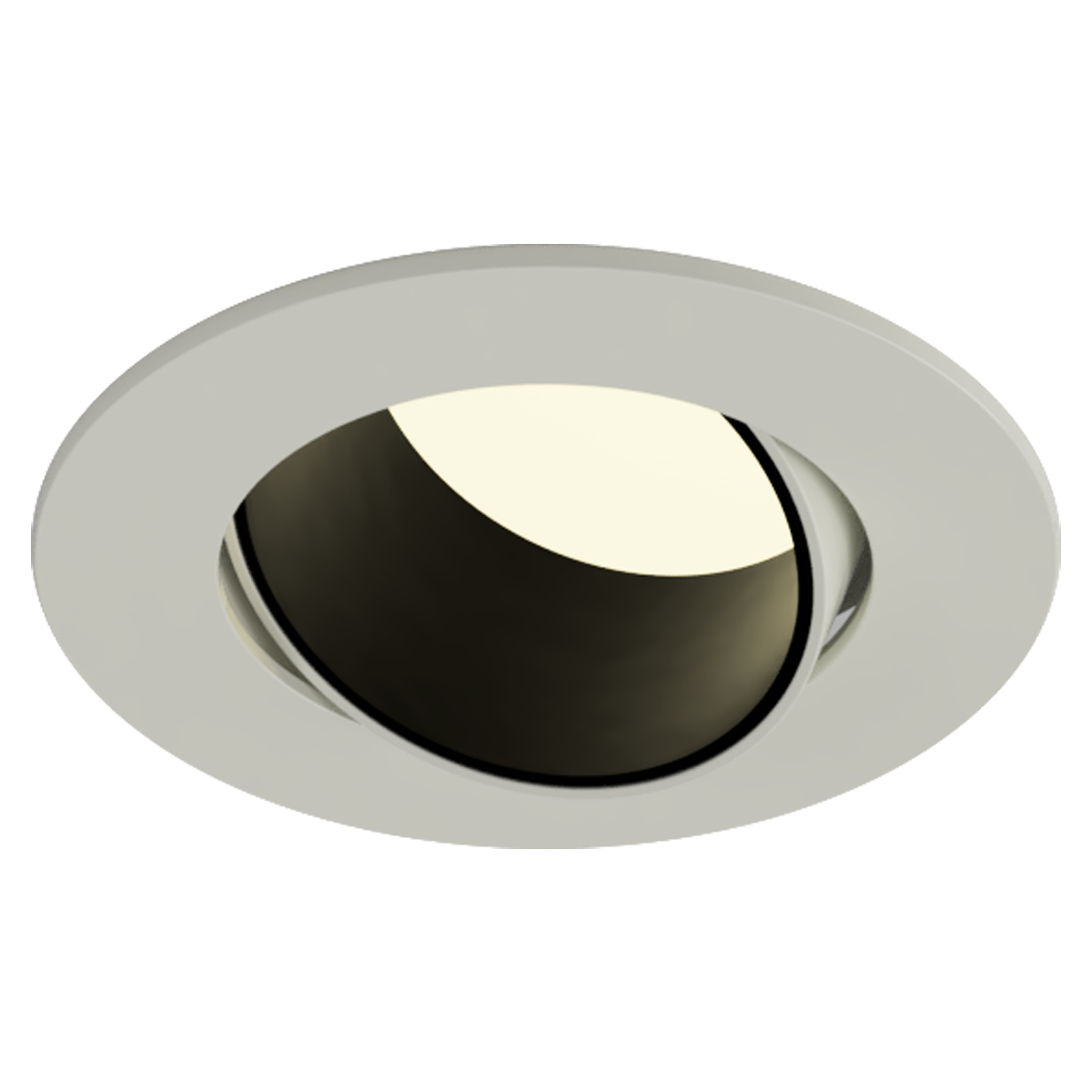

Apollo Recess Tilt


ART Apollo Recess Tilt

75mm adjustable architectural comfort downlighter

A perfectly proportioned low glare downlight with a large choice of dimmable Full Spectrum, High CRI and Dim to Warm LED light sources, optics and control options.

Colourbox modular design means clients can choose a selection of products from any of our luminaire families for seamless visual continuity.

Specifications

Type: Adjustable architectural comfort downlighter
Warranty: FIVE years
Standard: BS EN 60598
IP54
O/D: 75mm
Cut Out: 64mm

Light Sources
Spectrum Pure
Full Spectrum Very High CRI
12.8w 1200lm 98Ra CRI (R9:99)
CCT: 2700K, 3000K, 4000K
Optics: 15° 24° 38° 60°
Driver: Remote Mains Dim (pre-wired), DALI, 0-10v

Spectrum Ambient
Dim to Warm Very High CRI
12.8w 1200lm 96Ra CRI (R9:99)
CCT: 3000K-1800K
Optics: 15° 24° 38° 60°
Driver: Remote Mains Dim (pre-wired), DALI, 0-10v

AC7
Very High CRI with integral driver
9.5w 700lm 95Ra CRI (R9:74)
CCT: 2700K, 3000K, 4000K
Optics: 12° 24° 38°
Driver: Integral Mains Dim

Our Mains Dim and Casambi products are pre-wired to the relevant driver with a 0.35m LSZH mains cable and LIGHTS ON TESTED prior to leaving our workshop
