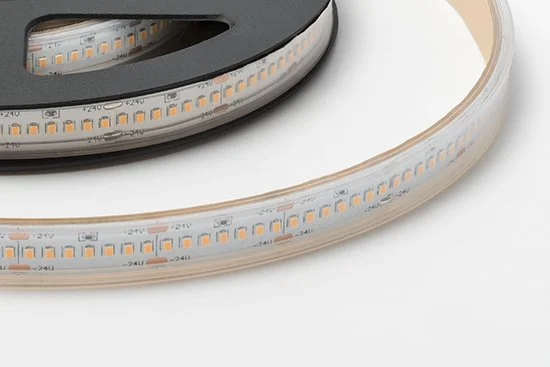

Linear HD

High Density Flexible LED Strip

High Density flexible LED strips with 280 LEDs per metre provide continuous lines of high-quality light with no visible imaging.

25mm cut points allow detailed accuracy when defining lengths.

Pre-wired terminations at the end of each reel minimise soldering on site and provide for improved lead times.

Like all Colourbox products, excellent dimming is guaranteed.

Specifications

Constant Voltage: 24v
LEDs/m: 280
Cut Points: 25mm
Output: 5w 445-545lm
10w 890-1090lm
15w 1410-1640lm
20w 1880-2180lm
CRI: 95Ra
CCT: 2200k, 2700k, 3000k, 4000k
IP Rating: IP20 & IP65
Pre-wiring: 100mm cable at each end
Reel length: 5m / 10m
Control: Mains Dim, DALI, Bluetooth, 0-10v

For exact specification and details of relevant drivers and installation profiles please see our datasheet.
