Apollo Base

AB Apollo Base

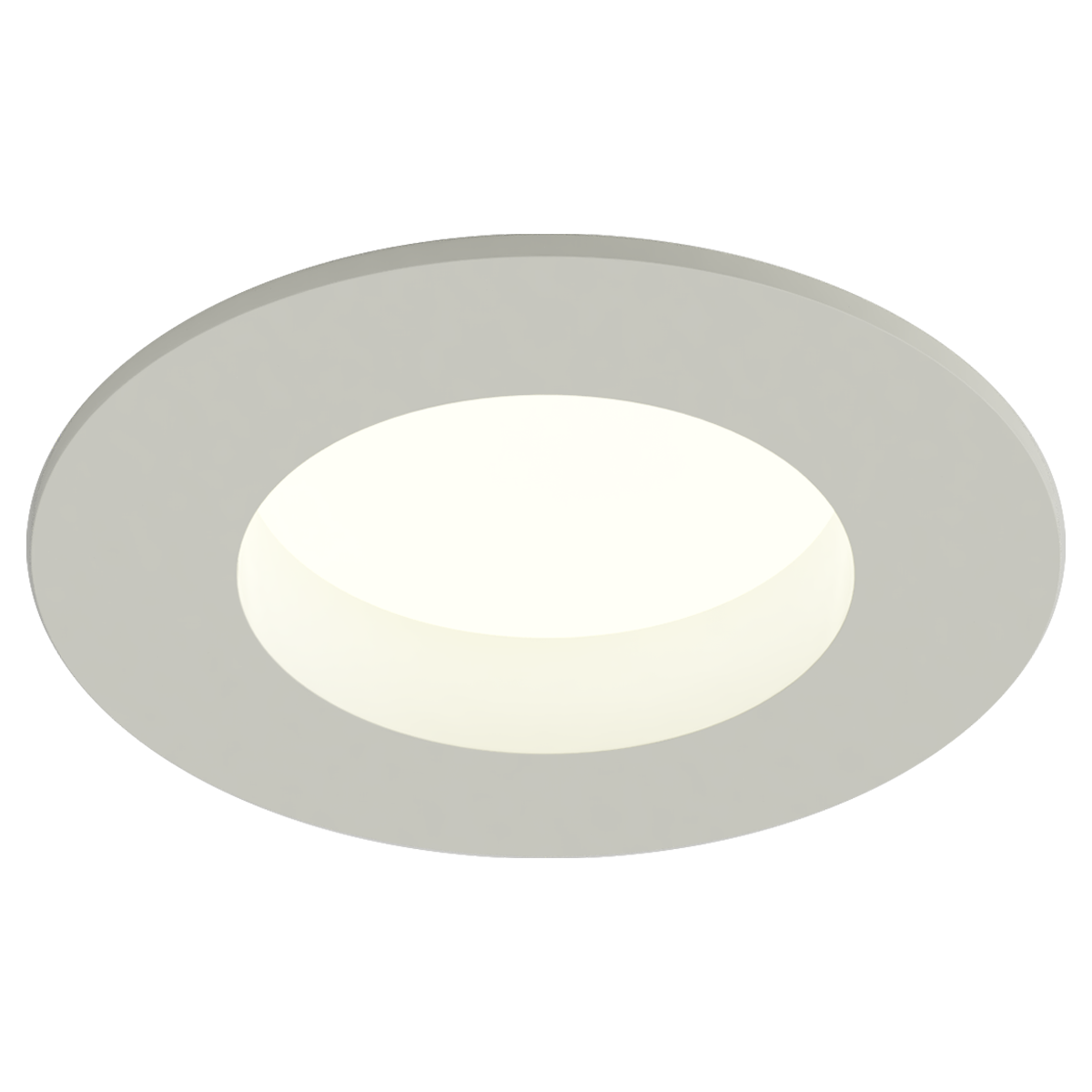

75mm Fixed Architectural Downlight

A simple and perfectly proportioned downlight with a large choice of dimmable Full Spectrum, High CRI and Dim to Warm LED light sources, optics and control options.

Colourbox modular design means clients can choose a selection of products from any of our luminaire families for seamless visual continuity.

Specifications

Type: Fixed architectural downlighter
Warranty: FIVE years
Standard: BS EN 60598
IP54 / IP65
O/D: 75mm
Cut Out: 64mm

Light Sources
Spectrum Pure
Natural Light / Full Spectrum / Superlative CRI
12.8w 1200lm 98Ra CRI (R9:99)
CCT: 2700K, 3000K, 4000K
Optics: 15° 24° 38° 60°
Driver: Remote Mains Dim (pre-wired), DALI, 0-10v

Spectrum Ambient
Dim to Warm / Superlative CRI
12.8w 1200lm 96Ra CRI (R9:99)
CCT: 3000K-1800K
Optics: 15° 24° 38° 60°
Driver: Remote Mains Dim (pre-wired), DALI, 0-10v

Spectrum Tune
Tuneable White / Very High CRI
11w 850lm 96Ra CRI
CCT: 4000K-1800K (Residential & Hospitality), 6500-2700K (Commercial)
Optics: 20° 24° 38° 60°
Driver: DALI DT-8

Spectrum Versa
High Efficiency / Very High CRI
8.3w 750lm 93Ra CRI (R9:66) 10.5w 1000lm 93Ra CRI (R9:66)
CCT: 2700K, 3000K
Optics: 15° 24° 38° 60°
Driver: Remote Mains Dim (pre-wired), DALI, 0-10v

Our Mains Dim products are pre-wired to the relevant driver with a 0.3m mains cable and are LIGHTS ON TESTED prior to leaving our workshop.
